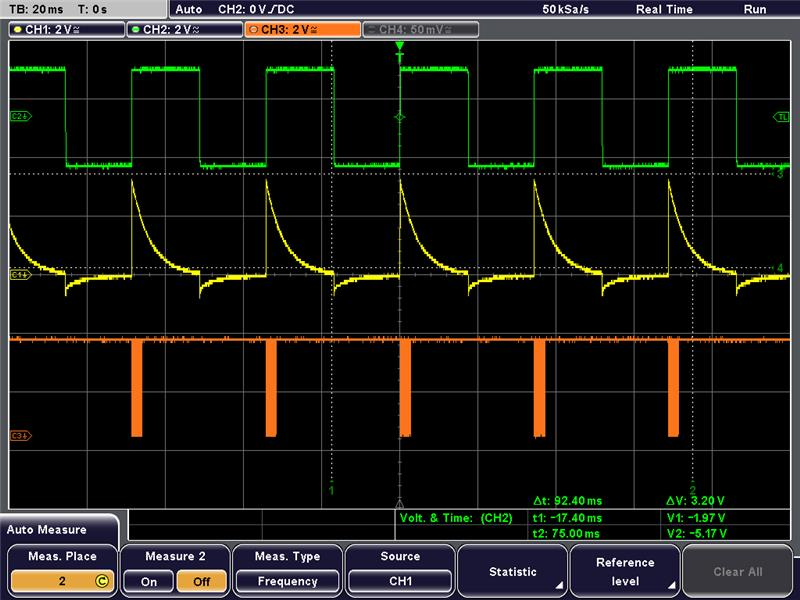

The figure shows the testing point output of the first gate. This is the square waveform. The waveform below the square waveform is when the probe is placed at the capacitor. Beneath this we can see the LEDs are being controlled by the transistors.
